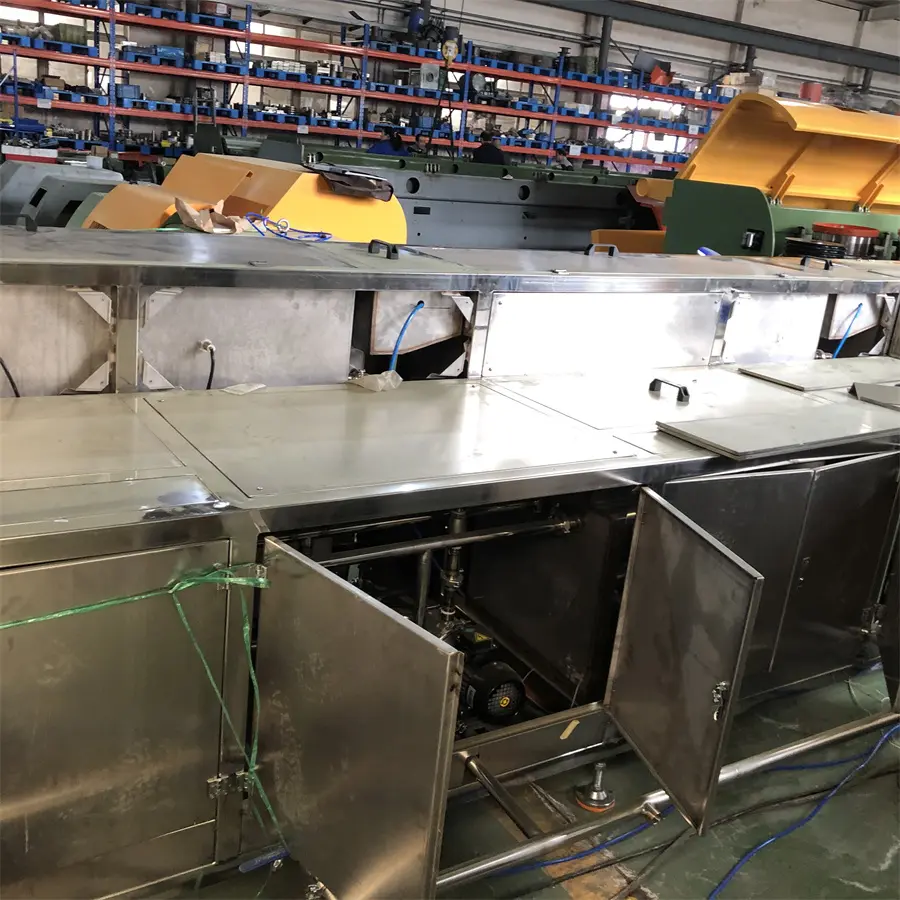

High-Quality Steel strip ultrasonic type cleaning machine Manufacturers, Factory

Basic Information

Total power	35KW
Temperature of heating	Less than 90°C
Process	Ultrasonic cleaning -- hot water cleaning -- hot air drying
Tank body	Stainless steel

Application

To produce high quality flux cored welding wire, it is necessary to have cleaning process for inlet strip.

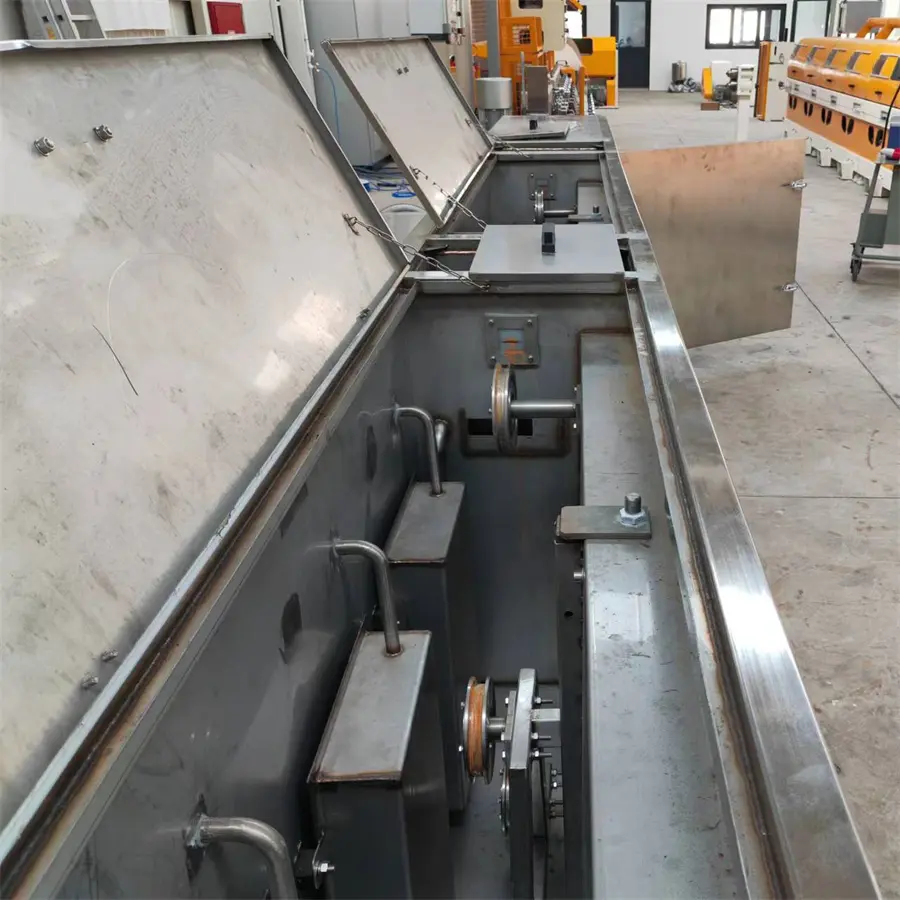

With many years experience and innovation, we developed the high efficiency cleaning line for carbon and stainless steel strips. The cleaning line consists of chemical cleaning tank with ultrasonic vibration, hot water cleaning tank and hot air drying tank.

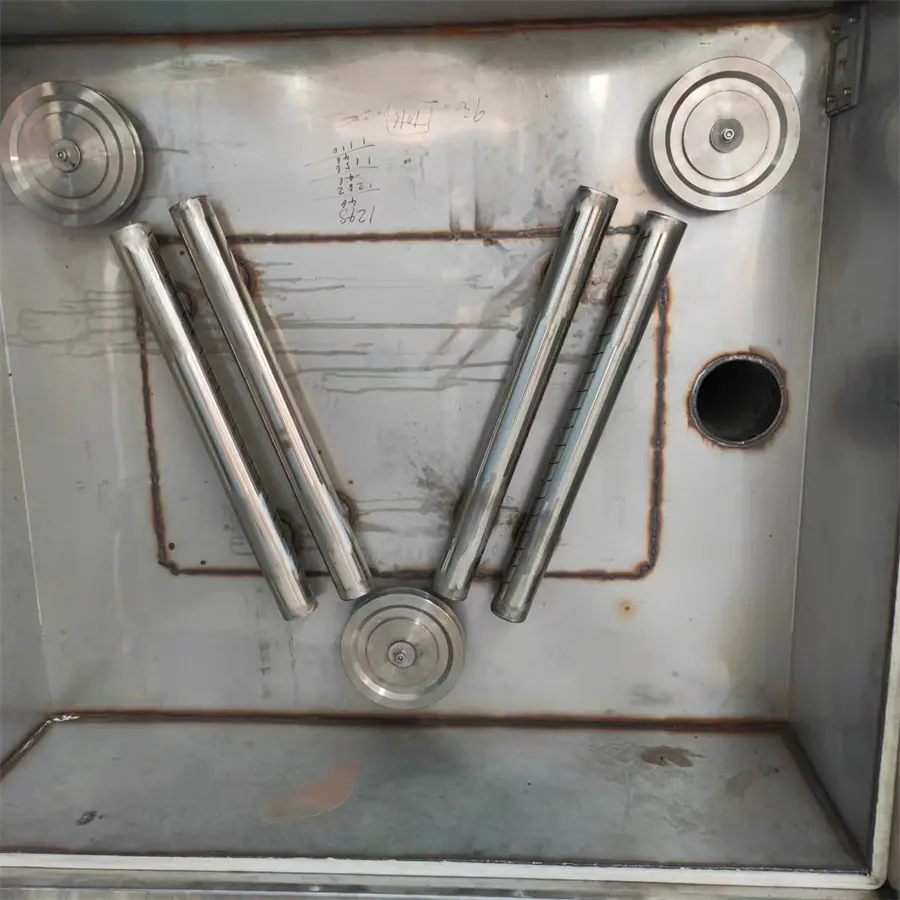

There are guiding rollers inside of each tank that can make the strip stay longer in the tank for better cleaning result. Both the soap solution and hot water are circular run between the working tank and storage tank.

The hot air sourced from the hot water tank and using the heat from the water tank that no need any additional heating energy. All of tanks are made of high grade stainless steel with rigid structure. The guiding rollers can be lifted up and press down that easy for customer to strip threading.

There is separate electrical cabinet for the cleaning line machines and could show the temperature and working status.

The surface of strip after cleaning process will be bright without any rust and oil. During the forming process, there will be oil lubrication device for smooth forming process purpose.

Features

High efficiency for removing the dirt on the strip surface;
High grade of stainless material for tanks body;
Separate electrical cabinet for the cleaning unit;
Ultrasonic type cleaning with perfect result;
Easy strip passing through by adjustable rollers.

Frequently Asked Questions

What types of steel strips can this cleaning line process?

This high-efficiency cleaning line is specifically developed for cleaning both carbon steel and stainless steel strips, which are essential for producing high-quality flux-cored welding wire.

How does the cleaning process work?

The system utilizes a three-stage process: chemical cleaning inside a tank with ultrasonic vibration, followed by hot water cleaning, and finishing with hot air drying.

How is energy efficiency achieved during the drying process?

The hot air is sourced directly from the hot water tank. By reusing the heat generated by the water tank, the system eliminates the need for additional heating energy.

What material is used to construct the tanks?

All the working and storage tanks are manufactured from high-grade stainless steel, ensuring a rigid, durable, and corrosion-resistant structure.

Is the strip threading process user-friendly?

Yes, the internal guiding rollers can be easily lifted up and pressed down, allowing operators to pass the steel strip through the tanks quickly and effortlessly.
