| Parameters | Specifications |
|---|---|
| Suitable for wire size | 2.0---3.2mm |
| Winding weight of each drum |
Max. 400kg/drum; Normally 250kg for each drum; Or can be required by customer. |
| Drum size & capacity | Can be required by customers |
| The drum height range | 500-900mm |
| Coiling speed | 2.5m/s---3m/s |
| Air pressure | 0.4Mpa |
| Wire arrangement type | Can be required by customer |
| Motor power | Pay-off motor: 11KW |
| Parameters | Specifications |
|---|---|
| Suitable for wire size | 0.8-1.6mm |
| Winding weight of each drum |
Φ500*800mm: 0-250kg; Φ660*Φ750 mm: 0-350kg; Or can be required by customers. |
| Drum size & capacity | Can be required by customers |
| Coiling speed | Max. 15m/s |
| Air pressure | 0.5Mpa |
| Wire arrangement type | Can be required by customer |
| Motor power | Pay-off motor: 22KW |
The equipment is designed to handle two main ranges: smaller wire sizes from 0.8mm to 1.6mm, and larger wire sizes from 2.0mm to 3.2mm.
For smaller wire sizes (0.8mm-1.6mm), the coiling speed can reach up to a maximum of 15m/s, while larger wires (2.0mm-3.2mm) coil at speeds of 2.5m/s to 3m/s.
The system features reliable Siemens PLC controls with an easily adjustable coiling size interface on a touch screen. The drum sizes, capacity, and wire arrangement types can all be customized according to customer specifications.

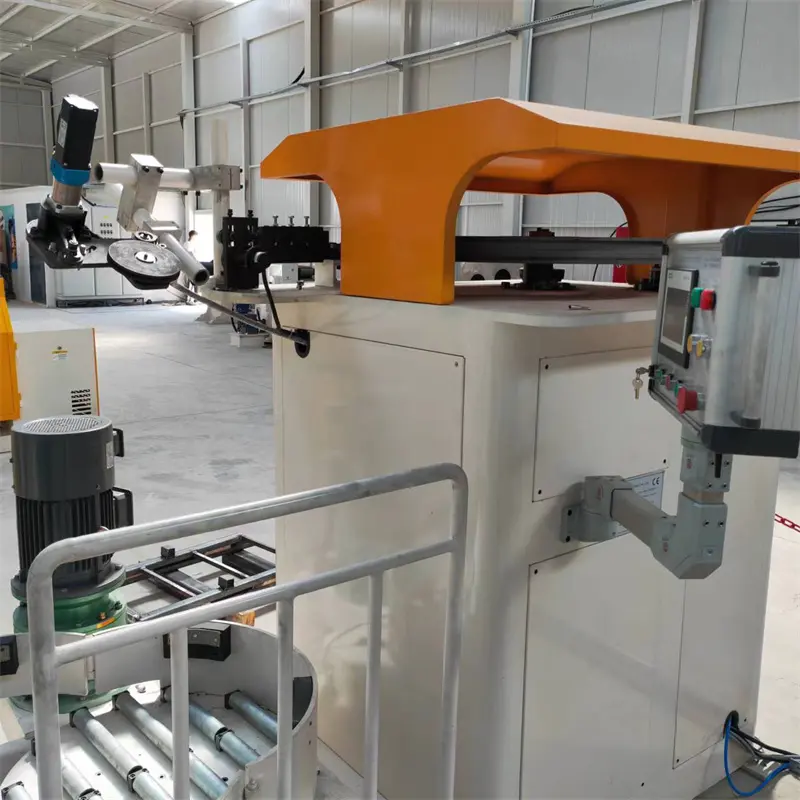

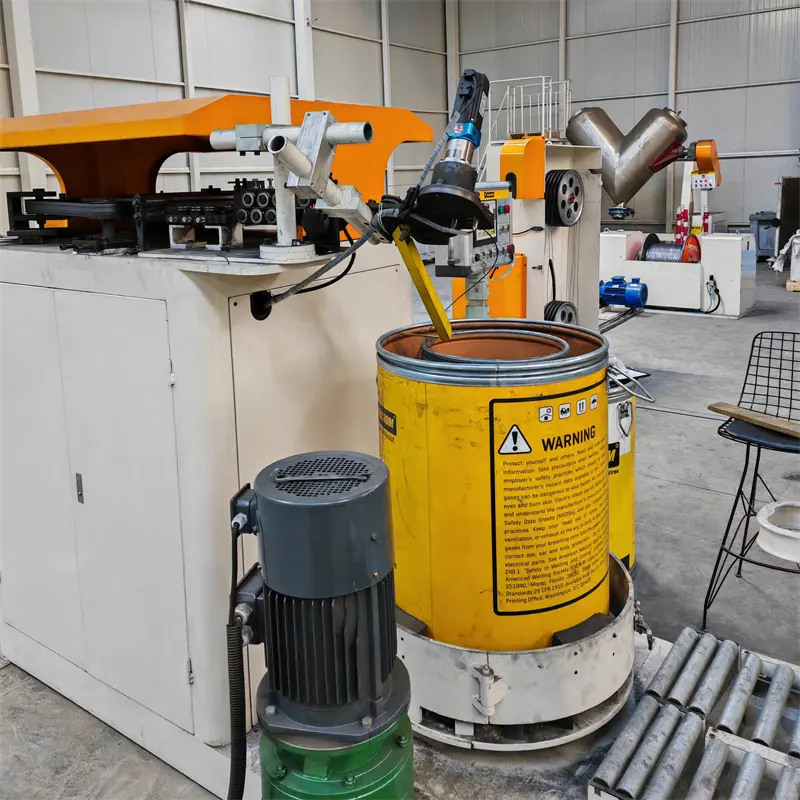

The standard delivery includes an 800mm spool type active payoff machine, a tension unit with dancer rollers, an inverted vertical drum packaging machine, an electrical control system, a weighing device, and a drum platform equipped with a safety guard.
The machinery is designed with a rigid structural body, built-in safety guards, and a dedicated drum platform with a safety guard to ensure safe operational environments.
