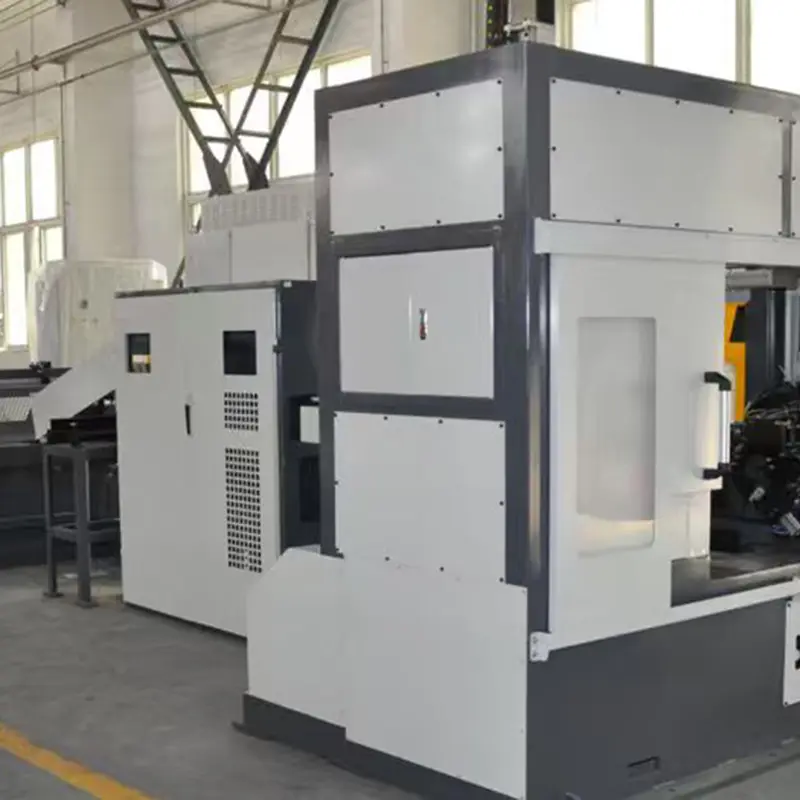

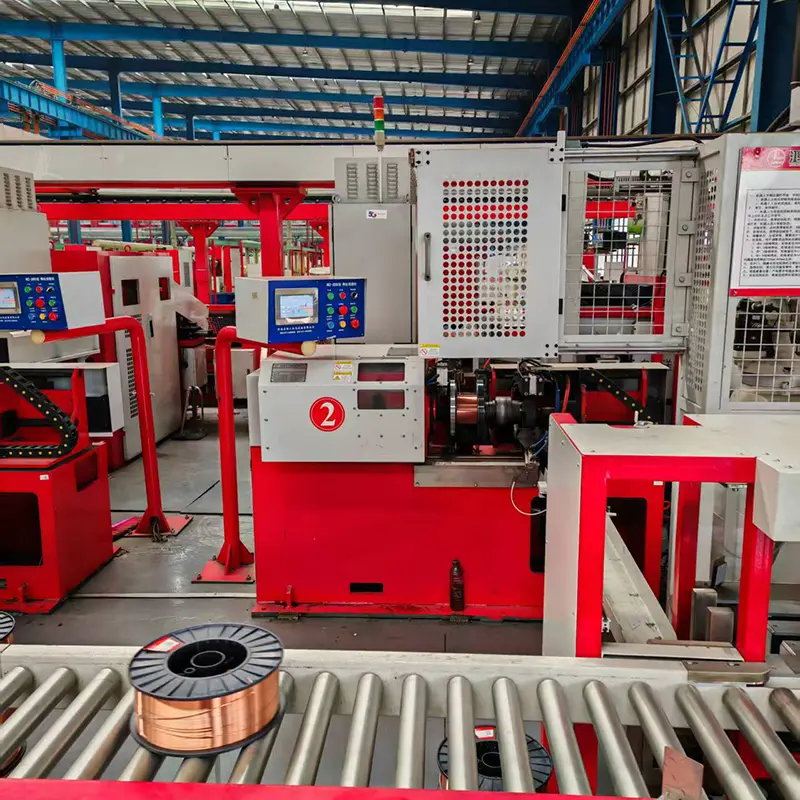

This is high speed layer rewinder with high precision. It is used for rewinding the different kinds of welding wires from 630/800mm spools to final 270/300mm smaller reels.
The machine could be designed for loading various sizes of reels and collecting different weight of welding wires.
We also have the automatic type layer rewinder without any human operation that suitable for huge capacity plant.

Send Inquiry

Product Description

Line composition

630/800 Spool pay-off
Tension roller
Rewinding machine
Electrical cabinet

Main specifications

Inlet wire size 0.8mm---1.6mm Wire ovality Less than 0.005mm
Line speed 20m/s Working speed 16-18m/s
Plastic reel size 270*150*90mm; 300*200*90mm Plastic reel capacity 5kg-20kg
Pay-off spool 630/800mm Pay-off motor 15KW
Rewinding motor 5.5KW Machine size 5.0m*3.0m
Control system SIEMENS PLC control with SIEMENS touch screen
Requirement of inlet wire Welding wire diameter ovality < 0.005mm
Suitable for wire type Flux cored wire, solid welding wire

Frequently Asked Questions

Q:What range of inlet wire sizes can this machine handle?
This rewinding line is designed to process inlet wire sizes ranging from 0.8mm to 1.6mm.
Q:What is the maximum operating speed of the line?
The machine features a maximum design line speed of 20m/s, with an optimal working speed of 16-18m/s.
Q:What types of control systems are integrated?
The entire line is controlled by a high-precision SIEMENS PLC control system coupled with a user-friendly SIEMENS touch screen interface.
Q:What sizes and capacities of plastic reels are supported?
It supports standard plastic reel sizes of 270*150*90mm and 300*200*90mm, with capacities ranging from 5kg to 20kg.
Q:Which types of welding wire are suitable for this machine?
This equipment is fully compatible with both flux cored wire and solid welding wire.
Q:What are the specifications for the motor power and overall machine dimensions?
The pay-off motor is rated at 15KW, the rewinding motor is 5.5KW, and the total installation footprint size is 5.0m * 3.0m.
