Before producing the flux cored welding wire, customer needs to prepare the fluxes and mixed these different type fluxes into the final powder which will be filled into the steel strip with specified filling ratio. It is necessary to have mixing process for these fluxes and make them uniformly filled into the steel strip.

The mixing machine body is made of the stainless steel and has 1000L volume inside. To have better mixing efficiency, we suggest to have 300L volume powder in the stainless pail.

There is control panel mounted next to the machine for customers easily control the mixing machine. Customer could start or stop the mixing machine by operating on the panel. When customer sets the working time, the machine can be stopped after working time automatically.

Product Description

Main Technical Data
Winding weight of each drum 1000L or can be customized design
Pail material Stainless steel
Motor power 10KW
Max. Mixing capacity 900KG (With powder density of 3g/cm³)

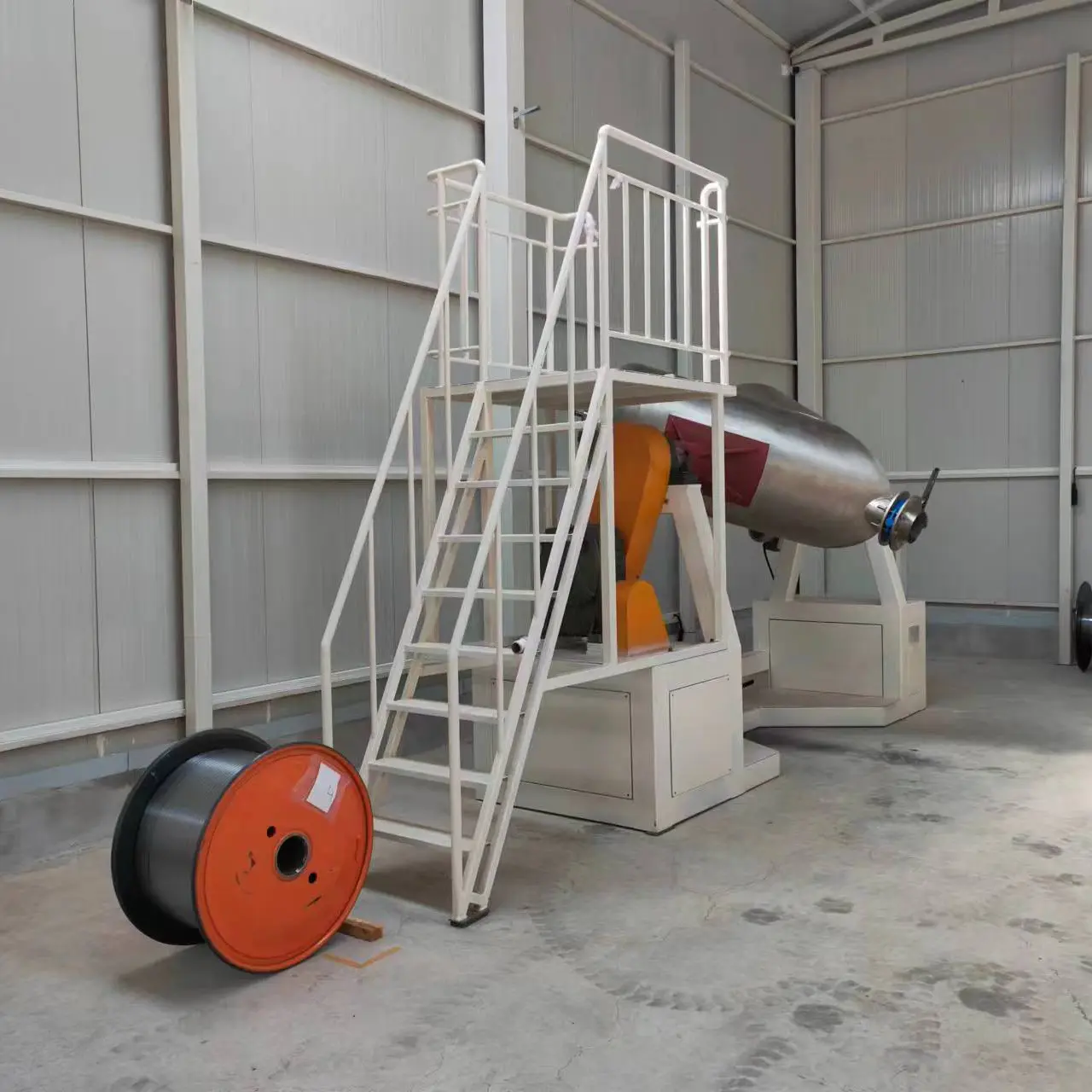

We will also prepare the ladder and platform for customer to put the powder inside of the pail easily, there are powder inlet on the top of the machine and outlet at the bottom of the machine. The whole machine is driven by powerful motor and reducer.
When mixing process finished, customer could adjust the outlet position by operating on the panel then open the outlet and collect the mixed powder easily.
We could design and make the different pail capacity mixing machine according to customers' requirements.
Main Scope of Supply

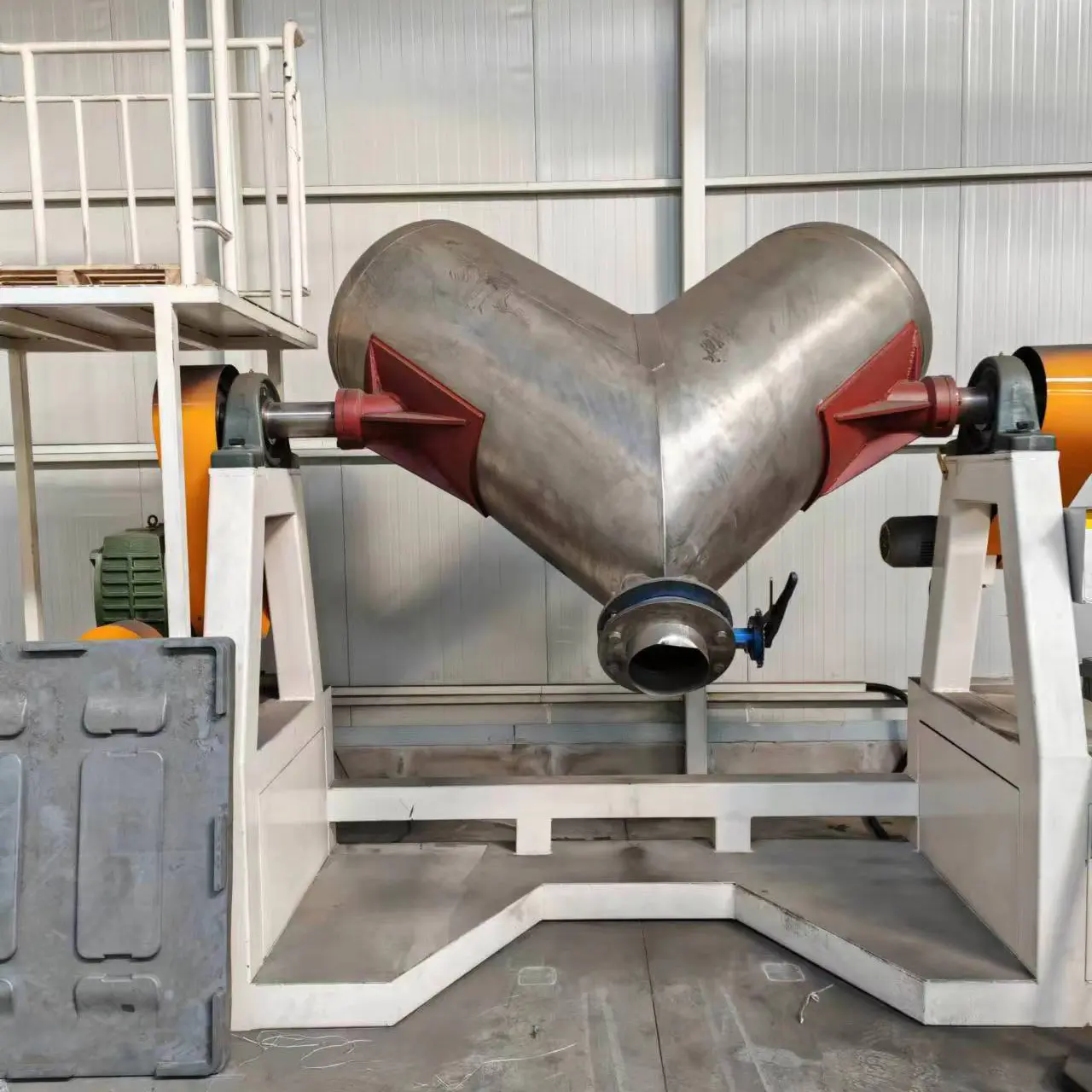

  • V-shape mixing pail body
  • Operating panel
  • Ladder
  • Motor and reducer transmission system
  • Electrical control system
Main Features of Machine
  • The dry mixing pail is made of stainless steel to avoid any rust
  • Big capacity with 1000L pail
  • Max. Mixing capacity: 900kg (With powder density of 3g/cm³)
  • Powerful motor and reliable transmission system for machine running
  • Equipped with touch screen for easy operation
Frequently Asked Questions
What is the standard capacity of the mixing machine?

The standard configuration comes with a 1000L pail capacity. However, different pail capacity mixing machines can be designed and manufactured according to your specific requirements.

What is the maximum mixing weight capacity?

The machine can handle a maximum mixing capacity of up to 900KG, based on a powder density of 3g/cm³.

What material is used to construct the mixing pail?

The dry mixing pail is constructed from high-grade stainless steel to ensure durability and effectively prevent any rust or contamination.

How is the powder loaded and discharged?

The machine is equipped with a ladder and platform for easy powder loading through the top inlet. For discharging, users can adjust the outlet position using the control panel to safely and easily collect the mixed powder from the bottom.

What kind of control system does the machine use?

The machine is built with an electrical control system and features a user-friendly touch screen operating panel for smooth control and adjustments.

What is the power source for the transmission system?

The transmission system is driven by a powerful 10KW motor combined with a highly reliable reducer system to ensure stable machine operations.
