There is mandrel can be smaller at the beginning to easily make the strip coil mounted on the mandrel. Then the mandrel will be expanded to make coil fixed on the mandrel tightly.

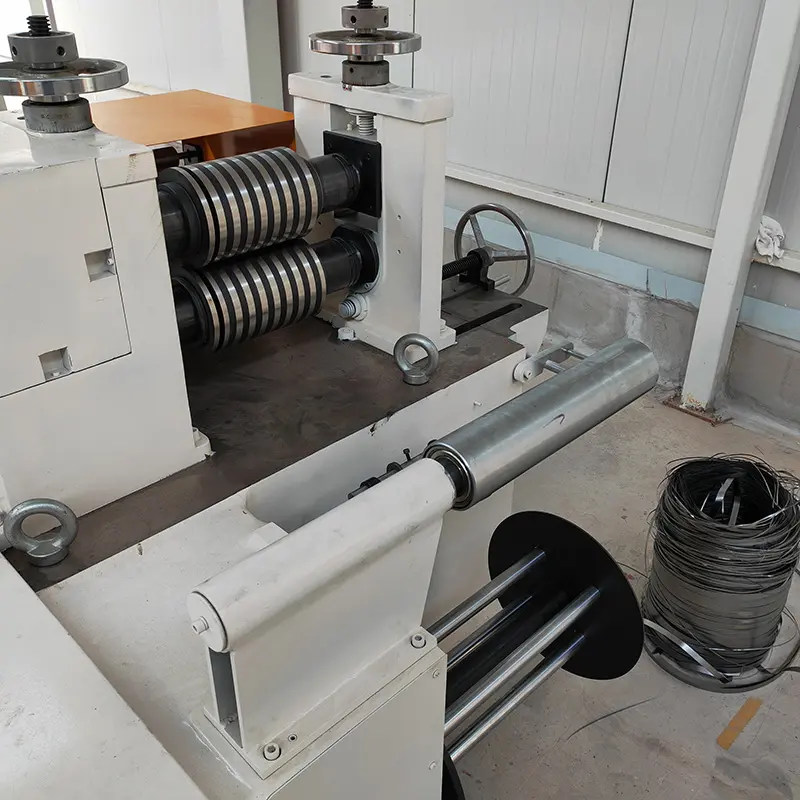

There are hard alloy material plates fixed on both sides of slitting unit. The distance between two plates should be depended on the strip width.
Designed for packaging and processing vertical type drum setups effectively.
For collecting the Max. 15pcs of slit strip on the pan.
The winding machine is driven by the 15KW motor and normally working speed is 60m/min.
After strip slitting, the strip winding machine can be pay-off and have strip rewinding on 800mm spool take-up.
The slitting line supports inlet raw strip thicknesses from a minimum of 0.1mm up to a maximum of 1.2mm.
The system can cut a maximum of 15 slit strips at one time, and the collection pan is specifically designed to collect up to 15 pieces of slit strip.
The slitting accuracy of the system is within ±0.05mm of the strip width, which is controlled by hard alloy material plates fixed on both sides of the slitting unit.
The slitting unit is powered by a 5.5KW motor, and the 800mm spool take-up/winding machine is powered by a 15KW motor.
Under normal operating conditions, the strip winding machine runs at a speed of 60m/min, while the overall line working speed is around 1m/s.
The pay-off features a size-adjustable mandrel. It can be set to a smaller size initially to allow the strip coil to be easily mounted, and then expanded to clamp the coil securely.
