High-Quality Drawing Dies & Rolling Cassettes Factory, Factories

They are different structures and working principles but same mount position and functions.

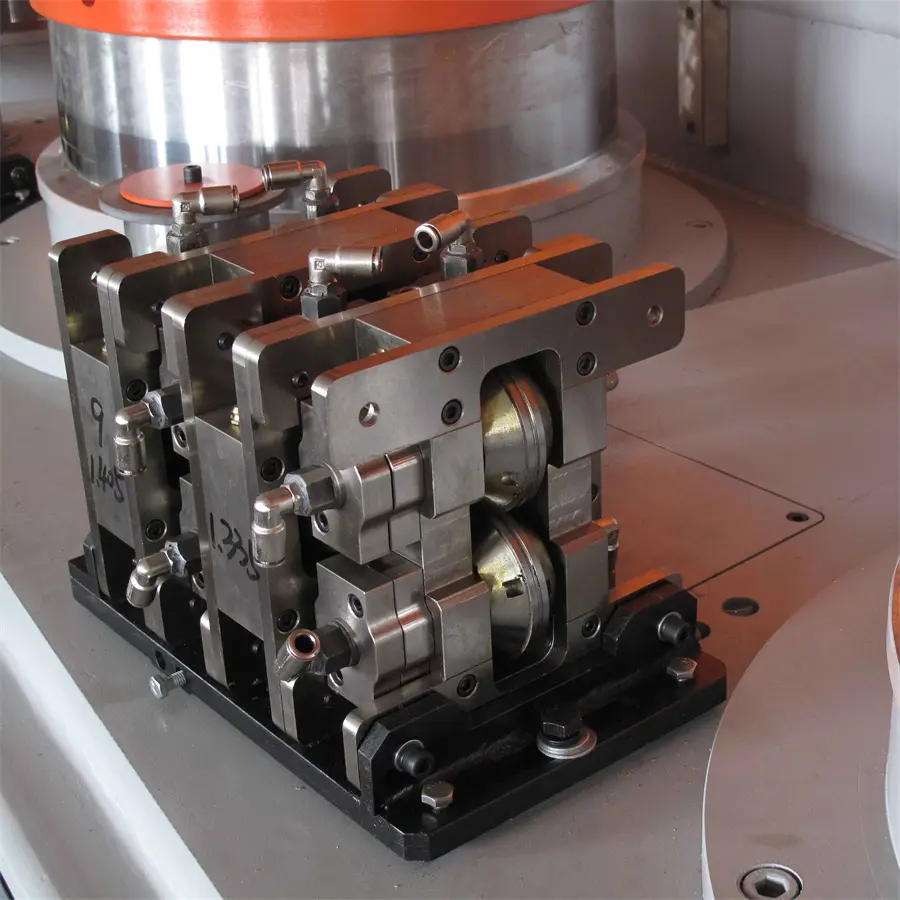

For the rolling cassette, there are totally 8 rollers mounted inside of the cassette, when the wire passes through the central hole, the roller will press the wire horizontally and vertically to make it round with smaller size. Without any lubricant powder, the rolling cassette will be more friendly to the environment. Customer only needs to add the lubrication grease for the bearings.

Send Inquiry

Product Description

Main features of machine

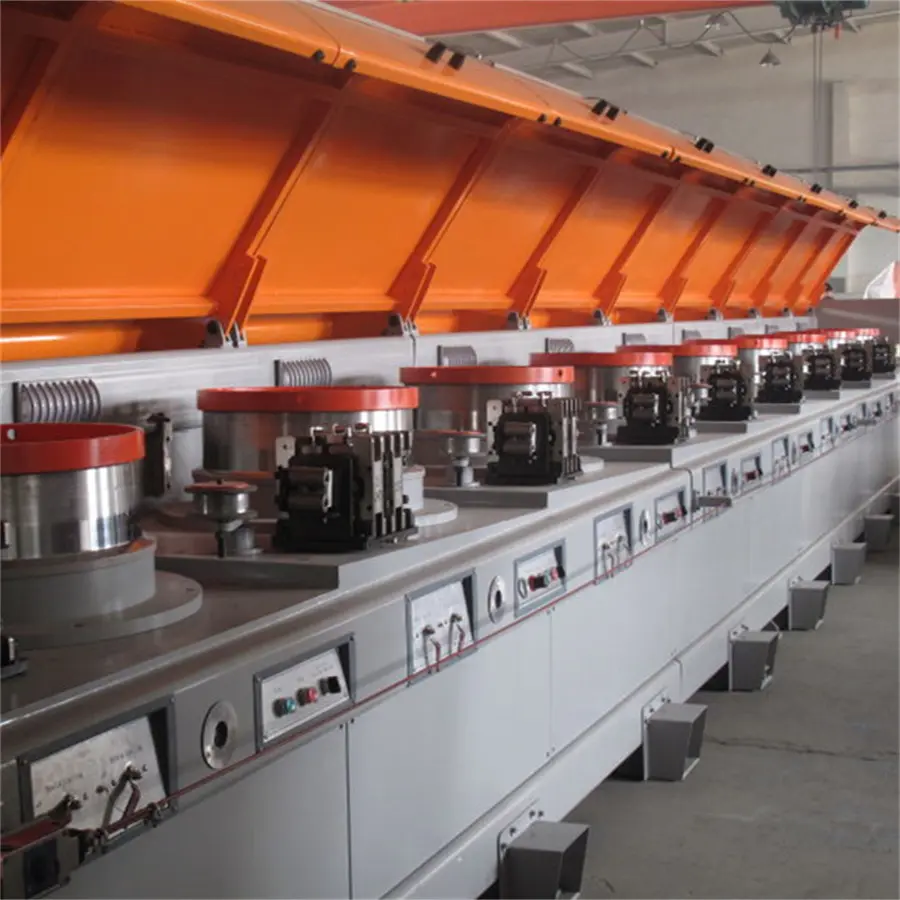

We have both drawing die box and rolling cassette during the wire drawing process. For different wire applications and roundness requirements, customer could choose the drawing dies or rollers accordingly. They are different structures and working principles but same mount position and functions.

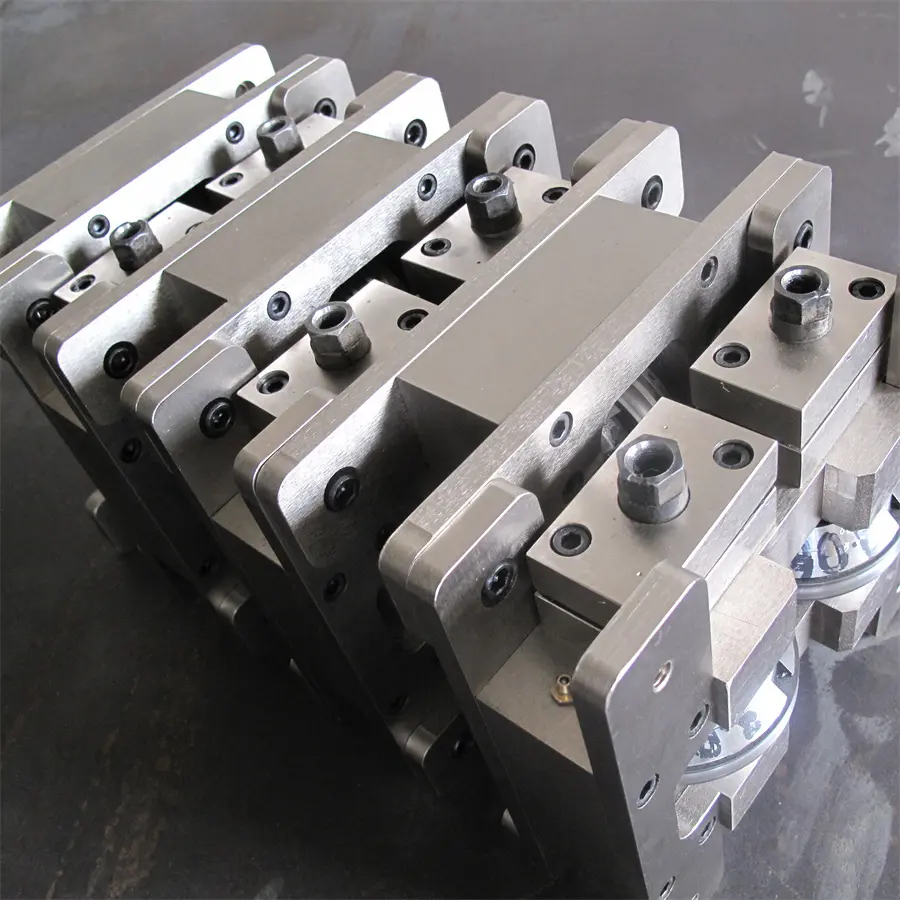

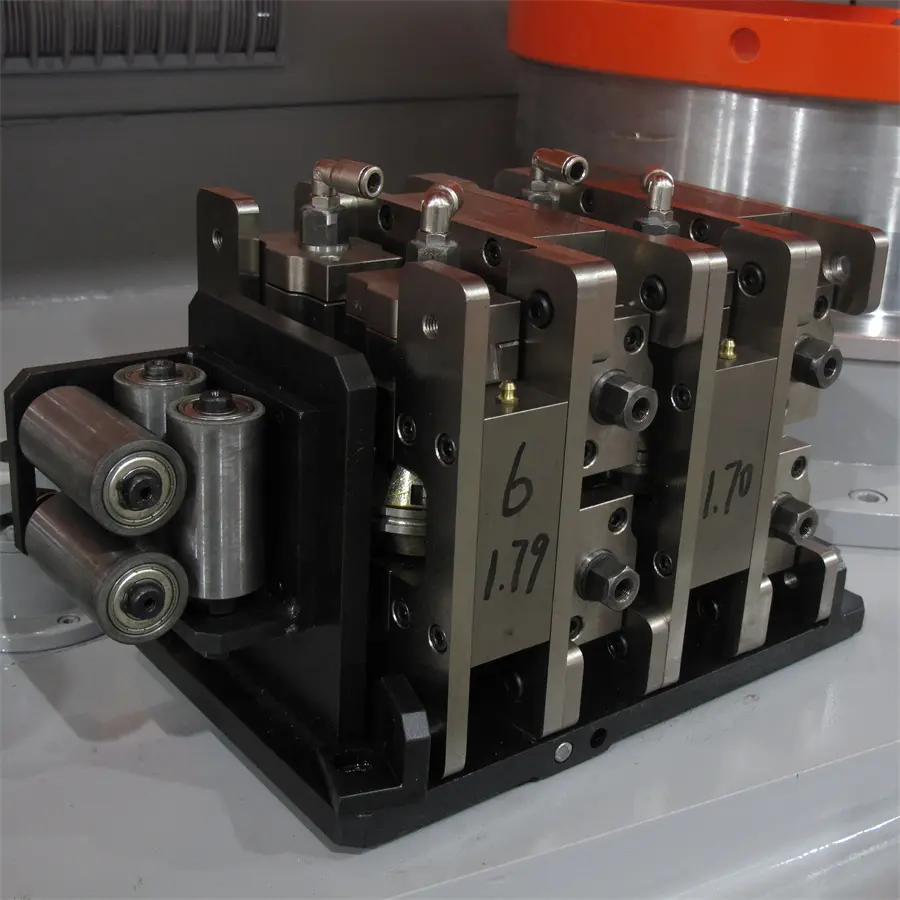

Rolling Cassette

Without any lubricant powder, the rolling cassette will be more friendly to the environment. Customer only needs to add the lubrication grease for the bearings.

Drawing Die Box

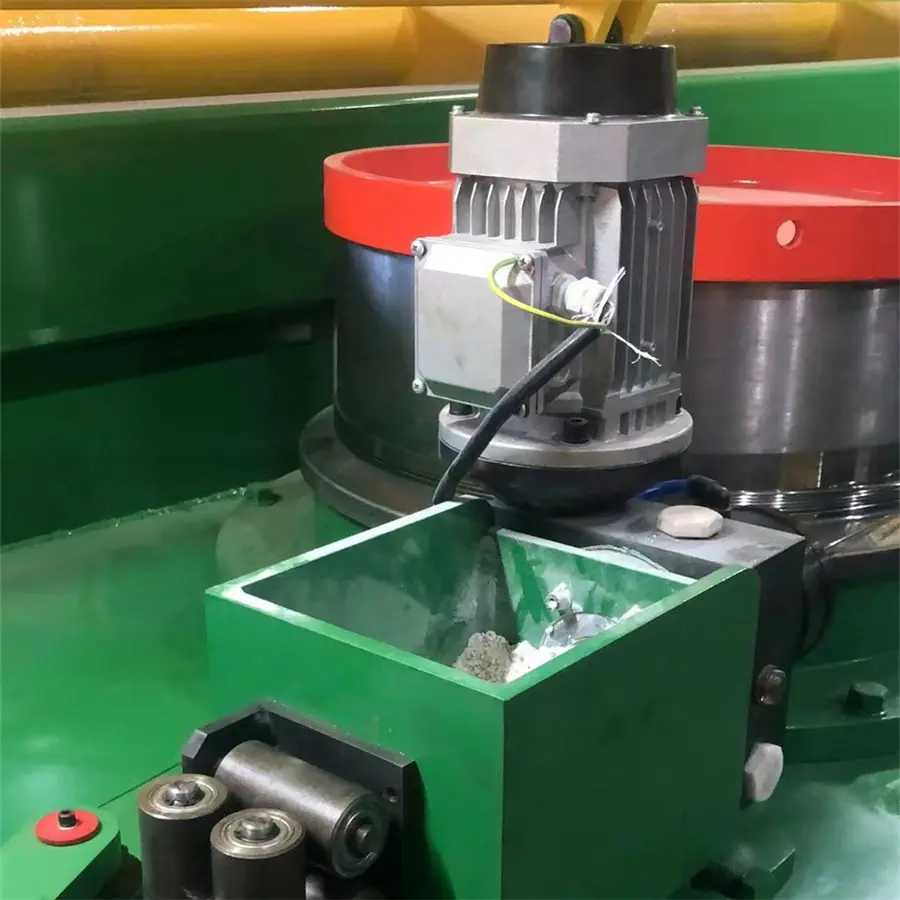

For the drawing die box, there are two chambers that one for lubrication powder, another for drawing die. The wire will be passed through the powder chamber and the powder will be coated on the wire surface for wire easier passing the further drawing die.

Due to the lubricant powder, there will be some dust during the drawing process.

Flux Cored Welding Wire Application: To produce the flux cored welding wire, it is better to have one drawing die box for the last drawing process to get the better roundness final wire for the next high precision layer rewinding machine. The better roundness wire will be arranged well on the spool of the layer rewinding machine without any wire disordered.

Design Advantage: Our own designed rolling cassette could have same working performance with the European device. Also, we improved our rolling cassette with easier adjustment that do not need complicated process and too many tools. Customer could control the roller gap and roller position by meters on the cassette.

Frequently Asked Questions

What are the main options for the wire drawing process?

Customers can choose between a drawing die box and a rolling cassette, depending on the specific wire applications and roundness requirements.

How does the rolling cassette work?

The rolling cassette features 8 rollers mounted inside. As the wire passes through the center hole, the rollers press the wire both horizontally and vertically to reduce its size and achieve a round shape.

Is the rolling cassette environmentally friendly?

Yes. The rolling cassette operates without lubricant powder, making it cleaner and more environmentally friendly. It only requires lubrication grease for the bearings.

What is the structure of the drawing die box?

The drawing die box contains two chambers: one for lubrication powder and another for the drawing die. The wire passes through the powder chamber to coat the surface, which assists in passing through the drawing die, though this method generates some dust.

What is recommended for producing flux cored welding wire?

It is recommended to use a drawing die box for the final drawing stage. This achieves the optimal roundness required for high-precision layer rewinding, ensuring the wire is neatly wound on the spool without disorder.

What makes this custom-designed rolling cassette unique?

It matches the performance of European devices but features simplified adjustment. Operators can easily adjust the roller gap and position using meters on the cassette without complex processes or extra tools.
